В этом примере показано, как можно получить текущее время от контроллера и поместить его в резервный модуль часов реального времени (RTC), подключенный к вашему Arduino.
Если ваш датчик позже теряет связь с контроллером или питанием, он может получить время от местного RTC. Модуль использует батарею CR2032 для резервного копирования времени, которая должна длиться около 3-4 лет.

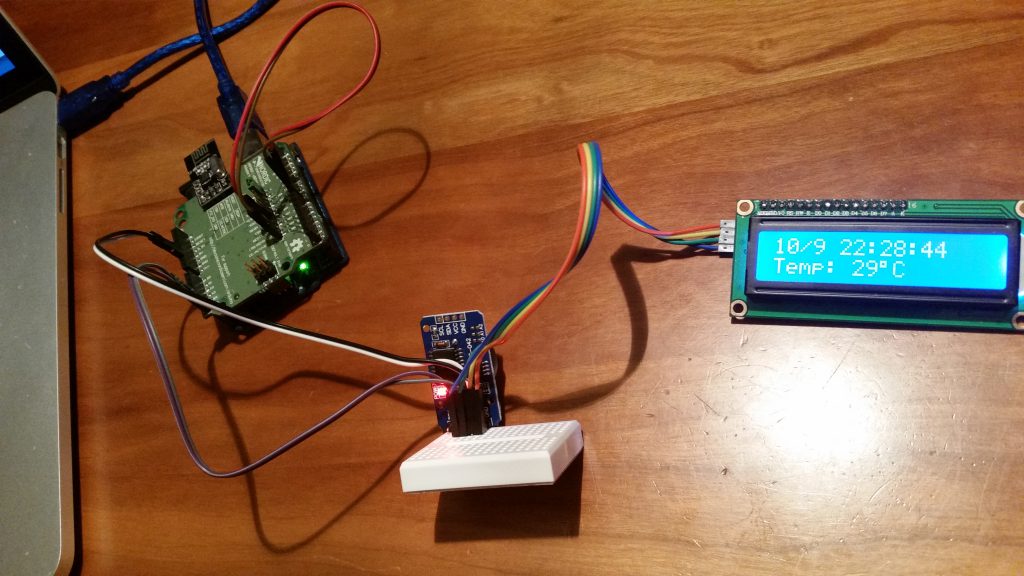

Мы также подключаем ЖК-дисплей, показывающий время и температуру [поступающую от внутреннего температурного датчика в модуле RTC].
В этом примере данные не отправляются контроллеру.
Подключение
Начните с подключения радиомодуля.
RTC Модуль | ЖК-дисплей | Arduino |
VCC | VCC | +5V |
SDA | SDA | A4 |
SCL | SCL | A5 |
Пример
В этом примере используются внешние библиотеки TimeLib, DS3232RTC и LiquidCrystal_I2C, найденные здесь. Пожалуйста, установите их и перезапустите Arduino IDE, прежде чем компилировать.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 |
/** * The MySensors Arduino library handles the wireless radio link and protocol * between your home built sensors/actuators and HA controller of choice. * The sensors forms a self healing radio network with optional repeaters. Each * repeater and gateway builds a routing tables in EEPROM which keeps track of the * network topology allowing messages to be routed to nodes. * * Created by Henrik Ekblad <henrik.ekblad@mysensors.org> * Copyright (C) 2013-2015 Sensnology AB * Full contributor list: https://github.com/mysensors/Arduino/graphs/contributors * * Documentation: http://www.mysensors.org * Support Forum: http://forum.mysensors.org * * This program is free software; you can redistribute it and/or * modify it under the terms of the GNU General Public License * version 2 as published by the Free Software Foundation. * ******************************* * * REVISION HISTORY * Version 1.0 - Henrik Ekblad * * DESCRIPTION * Example sketch showing how to request time from controller which is stored in RTC module * The time and temperature (DS3231/DS3232) is shown on an attached Crystal LCD display * * * Wiring (radio wiring on www.mysensors.org) * ------------------------------------ * Arduino RTC-Module I2C Display * ------------------------------------ * GND GND GND * +5V VCC VCC * A4 SDA SDA * A5 SCL SCL * * http://www.mysensors.org/build/display * */ // Enable debug prints to serial monitor #define MY_DEBUG // Enable and select radio type attached #define MY_RADIO_RF24 //#define MY_RADIO_RFM69 #include <SPI.h> #include <MySensors.h> #include <TimeLib.h> #include <DS3232RTC.h> // A DS3231/DS3232 library #include <Wire.h> #include <LiquidCrystal_I2C.h> bool timeReceived = false; unsigned long lastUpdate=0, lastRequest=0; // Initialize display. Google the correct settings for your display. // The follwoing setting should work for the recommended display in the MySensors "shop". LiquidCrystal_I2C lcd(0x27, 2, 1, 0, 4, 5, 6, 7, 3, POSITIVE); void setup() { // the function to get the time from the RTC setSyncProvider(RTC.get); // Request latest time from controller at startup requestTime(); // initialize the lcd for 16 chars 2 lines and turn on backlight lcd.begin(16,2); } void presentation() { // Send the sketch version information to the gateway and Controller sendSketchInfo("RTC Clock", "1.0"); } // This is called when a new time value was received void receiveTime(unsigned long controllerTime) { // Ok, set incoming time Serial.print("Time value received: "); Serial.println(controllerTime); RTC.set(controllerTime); // this sets the RTC to the time from controller - which we do want periodically timeReceived = true; } void loop() { unsigned long now = millis(); // If no time has been received yet, request it every 10 second from controller // When time has been received, request update every hour if ((!timeReceived && (now-lastRequest) > (10UL*1000UL)) || (timeReceived && (now-lastRequest) > (60UL*1000UL*60UL))) { // Request time from controller. Serial.println("requesting time"); requestTime(); lastRequest = now; } // Update display every second if (now-lastUpdate > 1000) { updateDisplay(); lastUpdate = now; } } void updateDisplay(){ tmElements_t tm; RTC.read(tm); // Print date and time lcd.home(); lcd.print(tm.Day); lcd.print("/"); lcd.print(tm.Month); // lcd.print(" "); // lcd.print(tmYearToCalendar(tm.Year)-2000); lcd.print(" "); printDigits(tm.Hour); lcd.print(":"); printDigits(tm.Minute); lcd.print(":"); printDigits(tm.Second); // Go to next line and print temperature lcd.setCursor ( 0, 1 ); lcd.print("Temp: "); lcd.print(RTC.temperature()/4); lcd.write(223); // Degree-sign lcd.print("C"); } void printDigits(int digits){ if(digits < 10) lcd.print('0'); lcd.print(digits); } |
