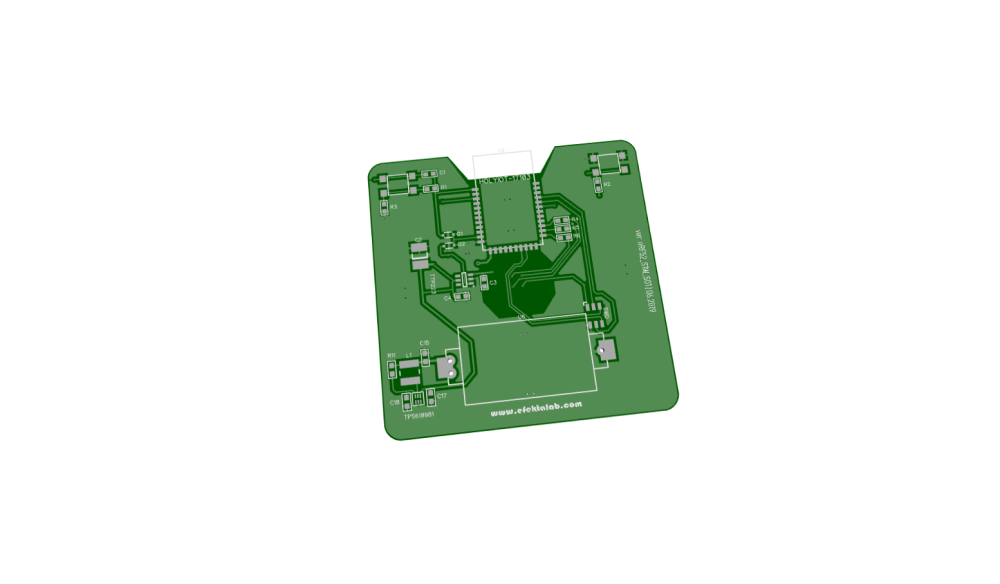

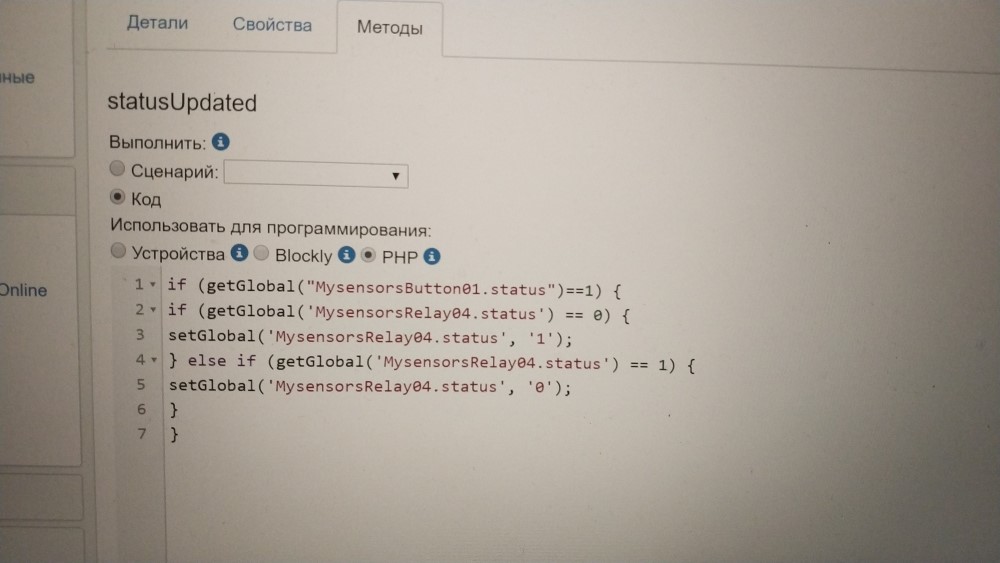

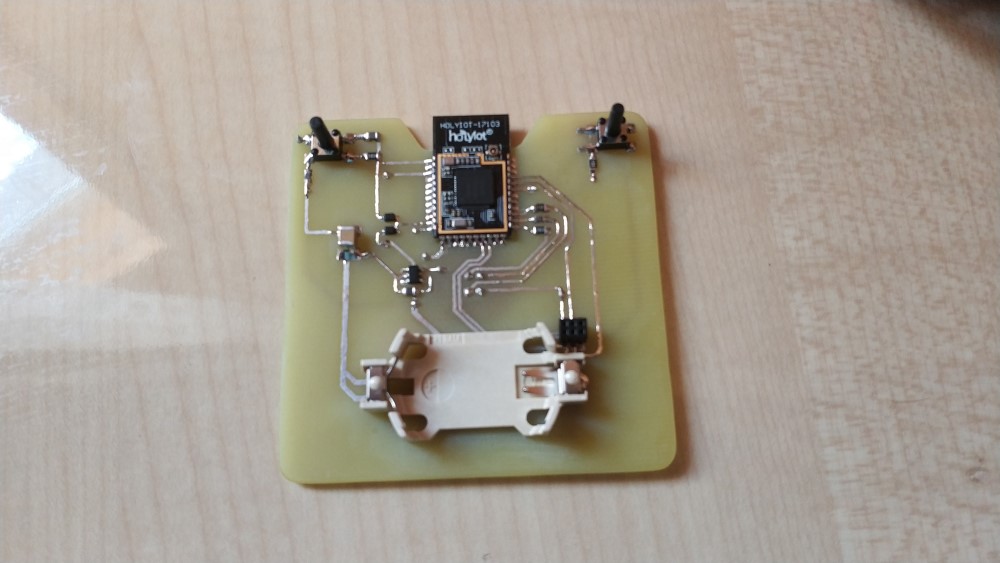

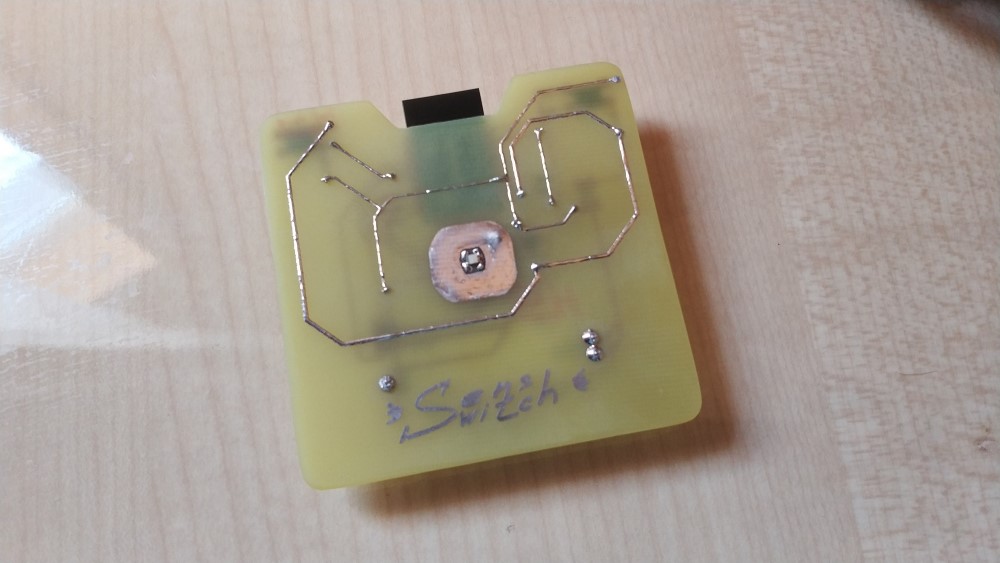

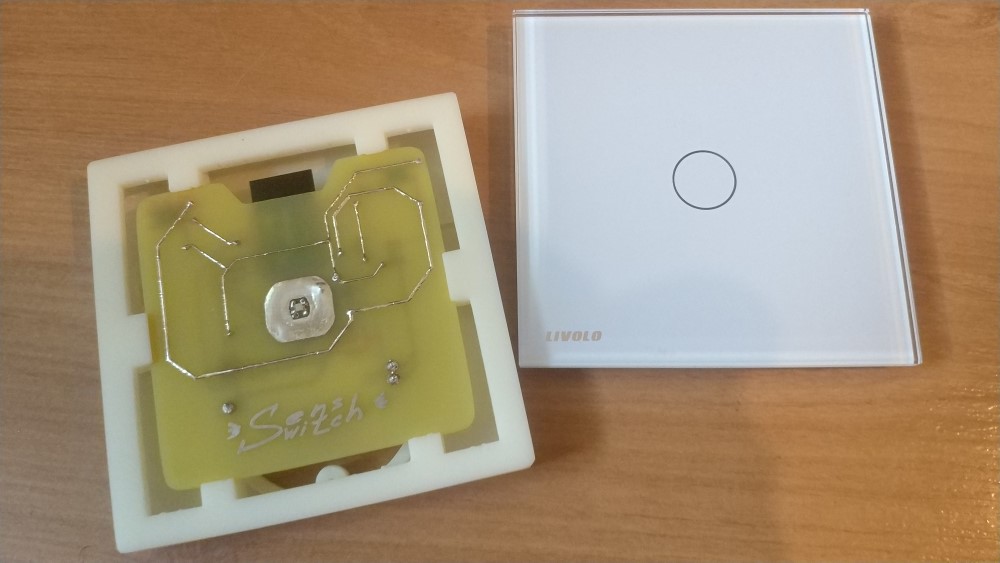

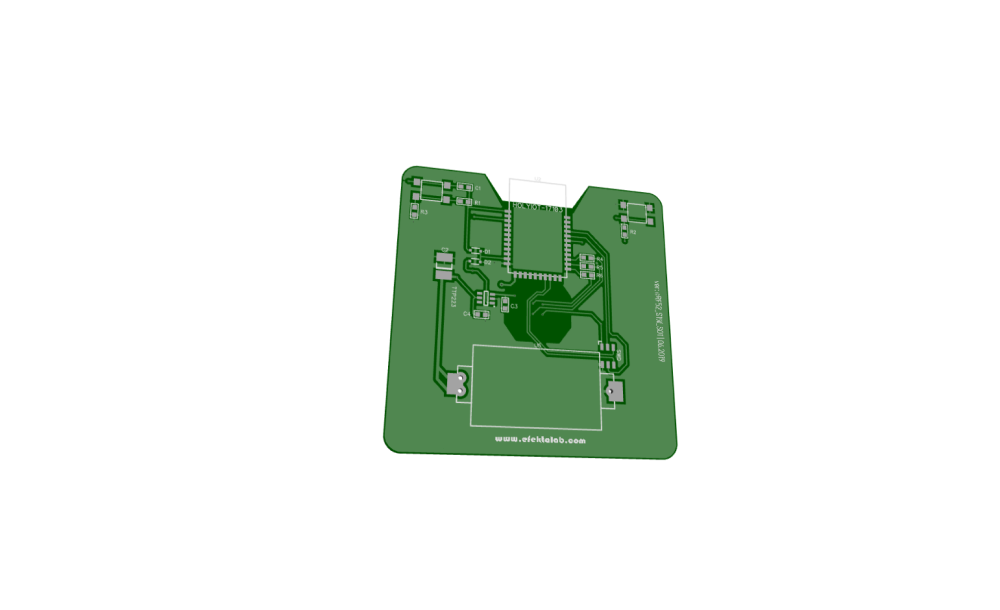

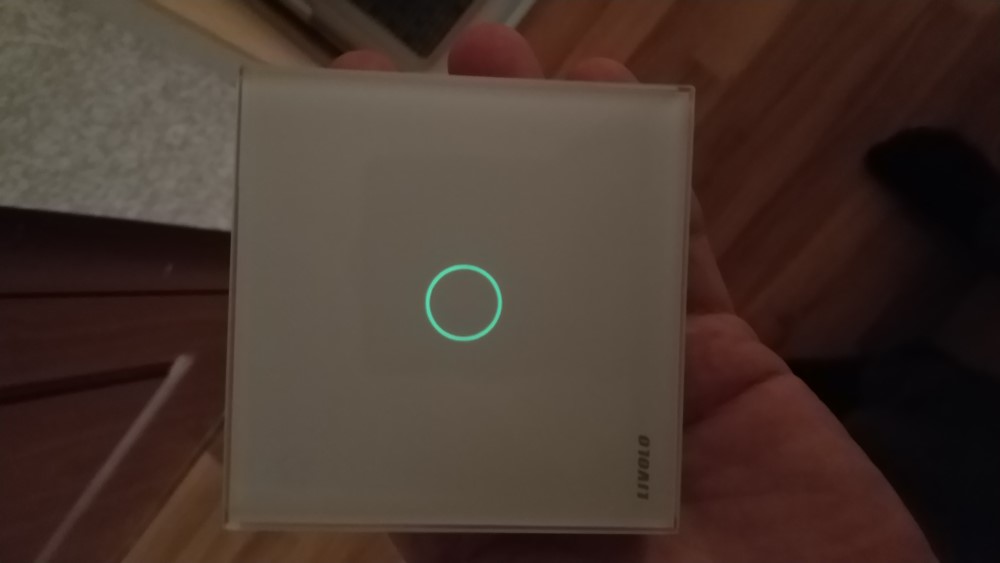

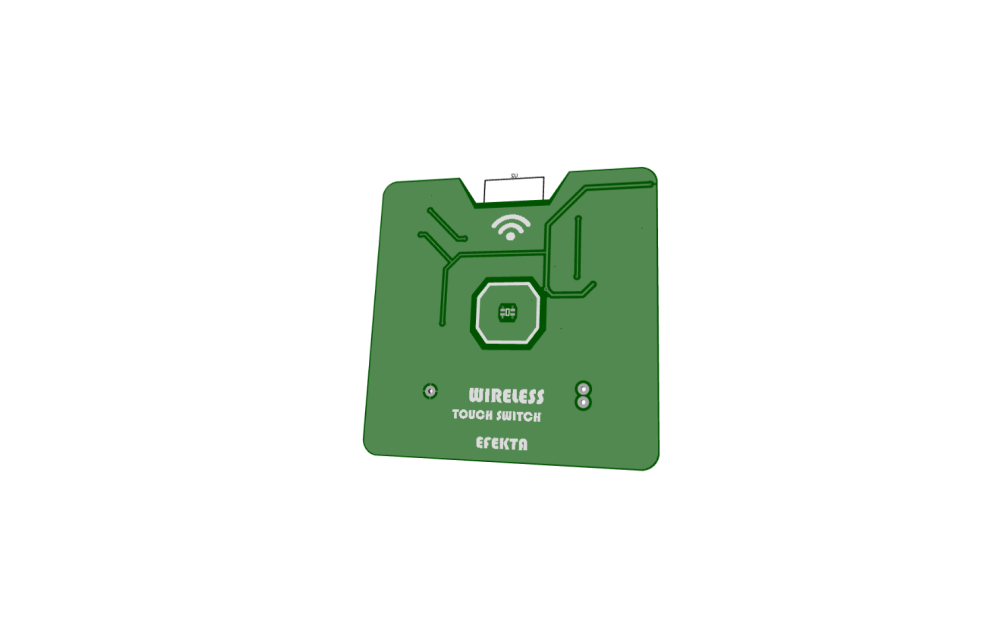

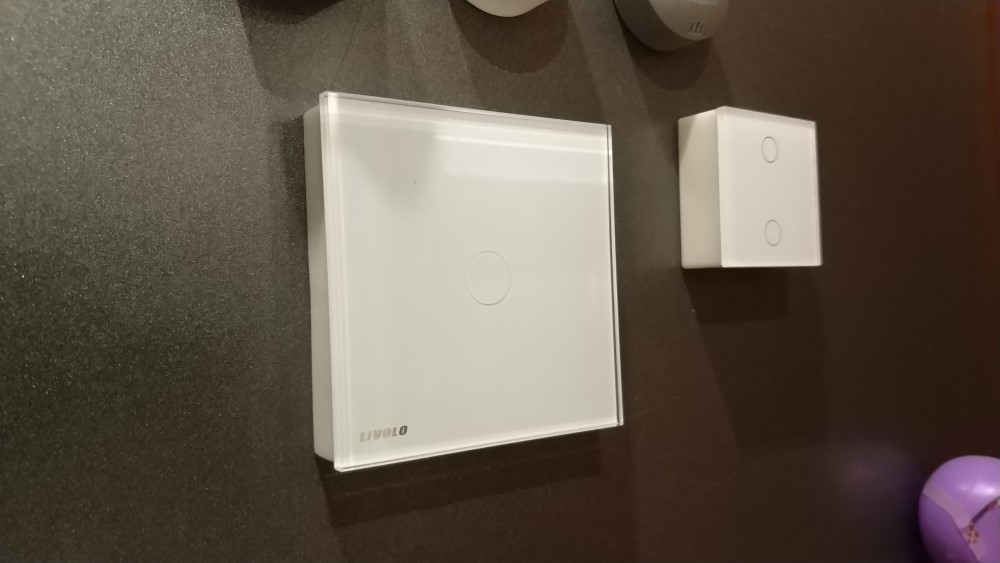

ТЕСТОВЫЙ СКЕТЧ СЕНСОРНОГО ВЫКЛЮЧАТЕЛЯ С ПРЕРЫВАНИЯМИ НА NRF_LPCOMP
*/
bool button_flag;
bool sens_flag;
bool send_flag;
bool detection;
bool nosleep;
byte timer;
unsigned long SLEEP_TIME = 21600000; //6 hours
unsigned long oldmillis;
unsigned long newmillis;
unsigned long interrupt_time;
unsigned long SLEEP_TIME_W;
uint16_t currentBatteryPercent;
uint16_t batteryVoltage = 0;
uint16_t battery_vcc_min = 2400;
uint16_t battery_vcc_max = 3000;
#define MY_RADIO_NRF5_ESB
//#define MY_PASSIVE_NODE
#define MY_NODE_ID 30
#define MY_PARENT_NODE_ID 0
#define MY_PARENT_NODE_IS_STATIC
#define MY_TRANSPORT_UPLINK_CHECK_DISABLED
#define IRT_PIN 3 //(PORT0, gpio 5)
#include <MySensors.h>
// see https://www.mysensors.org/download/serial_api_20
#define SENS_CHILD_ID 0
#define CHILD_ID_VOLT 254
MyMessage sensMsg(SENS_CHILD_ID, V_VAR1);
//MyMessage voltMsg(CHILD_ID_VOLT, V_VOLTAGE);
void preHwInit() {
sleep(2000);
pinMode(RED_LED, OUTPUT);
digitalWrite(RED_LED, HIGH);
pinMode(GREEN_LED, OUTPUT);
digitalWrite(GREEN_LED, HIGH);
pinMode(BLUE_LED, OUTPUT);
digitalWrite(BLUE_LED, HIGH);
pinMode(MODE_PIN, INPUT);
pinMode(SENS_PIN, INPUT);
}
void before()
{
NRF_POWER->DCDCEN = 1;
NRF_UART0->ENABLE = 0;
sleep(1000);
digitalWrite(BLUE_LED, LOW);
sleep(150);
digitalWrite(BLUE_LED, HIGH);
}
void presentation() {
sendSketchInfo("EFEKTA Sens 1CH Sensor", "1.1");
present(SENS_CHILD_ID, S_CUSTOM, "SWITCH STATUS");
//present(CHILD_ID_VOLT, S_MULTIMETER, "Battery");
}
void setup() {
digitalWrite(BLUE_LED, LOW);
sleep(100);
digitalWrite(BLUE_LED, HIGH);
sleep(200);
digitalWrite(BLUE_LED, LOW);
sleep(100);
digitalWrite(BLUE_LED, HIGH);
lpComp();
detection = false;
SLEEP_TIME_W = SLEEP_TIME;
pinMode(31, OUTPUT);
digitalWrite(31, HIGH);
/*
while (timer < 10) {
timer++;
digitalWrite(GREEN_LED, LOW);
wait(5);
digitalWrite(GREEN_LED, HIGH);
wait(500);
}
timer = 0;
*/
sleep(7000);
while (timer < 3) {
timer++;
digitalWrite(GREEN_LED, LOW);
sleep(15);
digitalWrite(GREEN_LED, HIGH);
sleep(85);
}
timer = 0;
sleep(1000);
}
void loop() {
if (detection) {
if (digitalRead(MODE_PIN) == 1 && button_flag == 0 && digitalRead(SENS_PIN) == 0) {
//back side button detection
button_flag = 1;
nosleep = 1;
}
if (digitalRead(MODE_PIN) == 1 && button_flag == 1 && digitalRead(SENS_PIN) == 0) {
digitalWrite(RED_LED, LOW);
wait(10);
digitalWrite(RED_LED, HIGH);
wait(50);
}
if (digitalRead(MODE_PIN) == 0 && button_flag == 1 && digitalRead(SENS_PIN) == 0) {
nosleep = 0;
button_flag = 0;
digitalWrite(RED_LED, HIGH);
lpComp_reset();
}
if (digitalRead(SENS_PIN) == 1 && sens_flag == 0 && digitalRead(MODE_PIN) == 0) {
//sens detection
sens_flag = 1;
nosleep = 1;
newmillis = millis();
interrupt_time = newmillis - oldmillis;
SLEEP_TIME_W = SLEEP_TIME_W - interrupt_time;
if (send(sensMsg.set(detection))) {
send_flag = 1;
}
}
if (digitalRead(SENS_PIN) == 1 && sens_flag == 1 && digitalRead(MODE_PIN) == 0) {
if (send_flag == 1) {
while (timer < 10) {
timer++;
digitalWrite(GREEN_LED, LOW);
wait(20);
digitalWrite(GREEN_LED, HIGH);
wait(30);
}
timer = 0;
} else {
while (timer < 10) {
timer++;
digitalWrite(RED_LED, LOW);
wait(20);
digitalWrite(RED_LED, HIGH);
wait(30);
}
timer = 0;
}
}
if (digitalRead(SENS_PIN) == 0 && sens_flag == 1 && digitalRead(MODE_PIN) == 0) {
sens_flag = 0;
nosleep = 0;
send_flag = 0;
digitalWrite(GREEN_LED, HIGH);
sleep(500);
lpComp_reset();
}
if (SLEEP_TIME_W < 60000) {
SLEEP_TIME_W = SLEEP_TIME;
sendBatteryStatus();
}
}
else {
//if (detection == -1) {
SLEEP_TIME_W = SLEEP_TIME;
sendBatteryStatus();
}
if (nosleep == 0) {
oldmillis = millis();
sleep(SLEEP_TIME_W);
}
}
void sendBatteryStatus() {
wait(20);
batteryVoltage = hwCPUVoltage();
wait(2);
if (batteryVoltage > battery_vcc_max) {
currentBatteryPercent = 100;
}
else if (batteryVoltage < battery_vcc_min) {
currentBatteryPercent = 0;
} else {
currentBatteryPercent = (100 * (batteryVoltage - battery_vcc_min)) / (battery_vcc_max - battery_vcc_min);
}
sendBatteryLevel(currentBatteryPercent, 1);
wait(2000, C_INTERNAL, I_BATTERY_LEVEL);
//send(powerMsg.set(batteryVoltage), 1);
//wait(2000, 1, V_VAR1);
}
void lpComp() {
NRF_LPCOMP->PSEL = IRT_PIN;
NRF_LPCOMP->ANADETECT = 1;
NRF_LPCOMP->INTENSET = B0100;
NRF_LPCOMP->ENABLE = 1;
NRF_LPCOMP->TASKS_START = 1;
NVIC_SetPriority(LPCOMP_IRQn, 15);
NVIC_ClearPendingIRQ(LPCOMP_IRQn);
NVIC_EnableIRQ(LPCOMP_IRQn);
}
void s_lpComp() {
if ((NRF_LPCOMP->ENABLE) && (NRF_LPCOMP->EVENTS_READY)) {
NRF_LPCOMP->INTENCLR = B0100;
}
}
void r_lpComp() {
NRF_LPCOMP->INTENSET = B0100;
}
#if __CORTEX_M == 0x04
#define NRF5_RESET_EVENT(event) \
event = 0; \
(void)event
#else
#define NRF5_RESET_EVENT(event) event = 0
#endif
extern "C" {
void LPCOMP_IRQHandler(void) {
detection = true;
NRF5_RESET_EVENT(NRF_LPCOMP->EVENTS_UP);
NRF_LPCOMP->EVENTS_UP = 0;
MY_HW_RTC->CC[0] = (MY_HW_RTC->COUNTER + 2);
}
}
void lpComp_reset () {
s_lpComp();
detection = false;
NRF_LPCOMP->EVENTS_UP = 0;
r_lpComp();
}
Код: Выделить всё
/*
